Full Motion Flight Simulator
Assembly

	Here you can see the individual steps of assembling the motion rig.

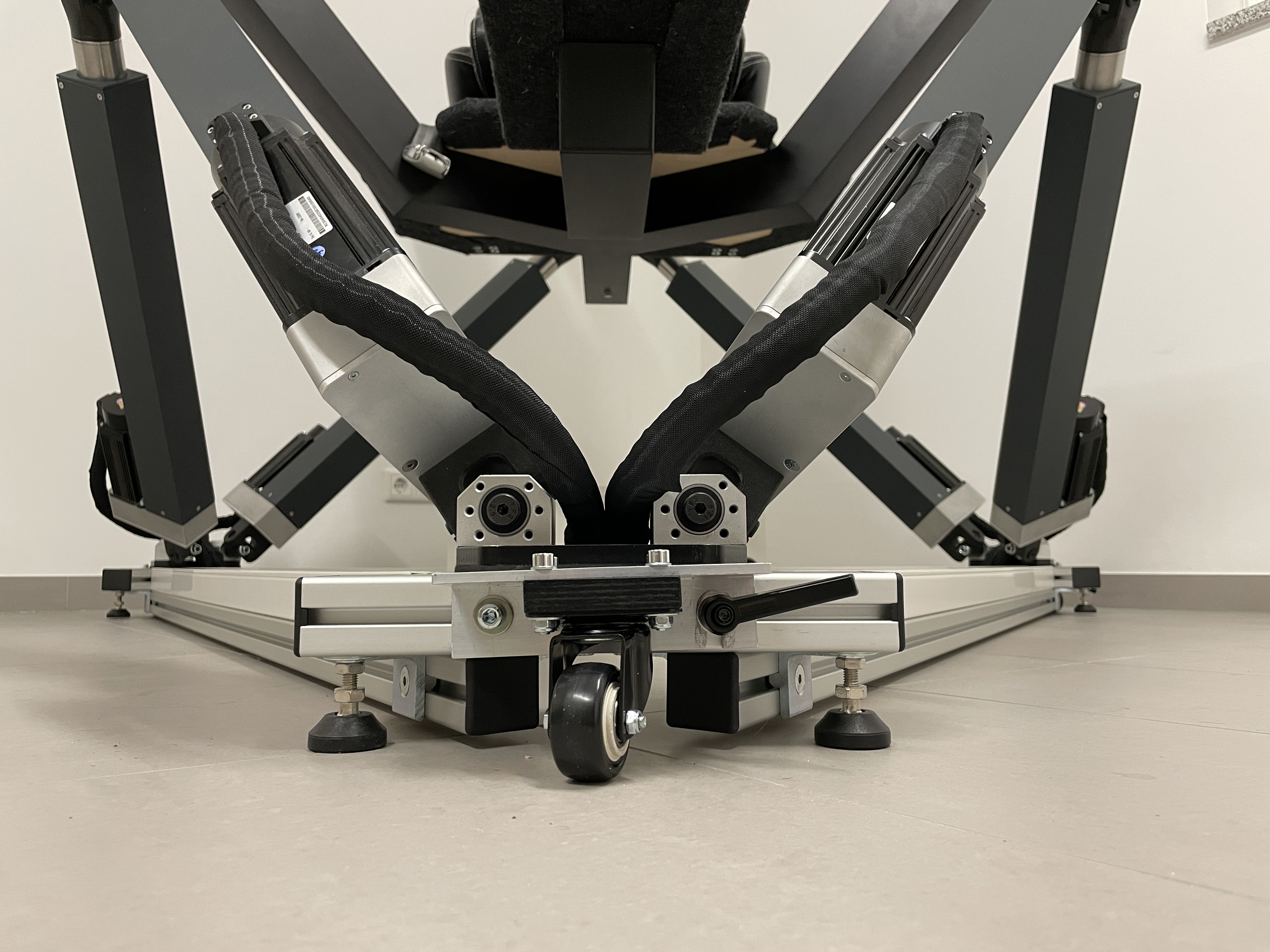

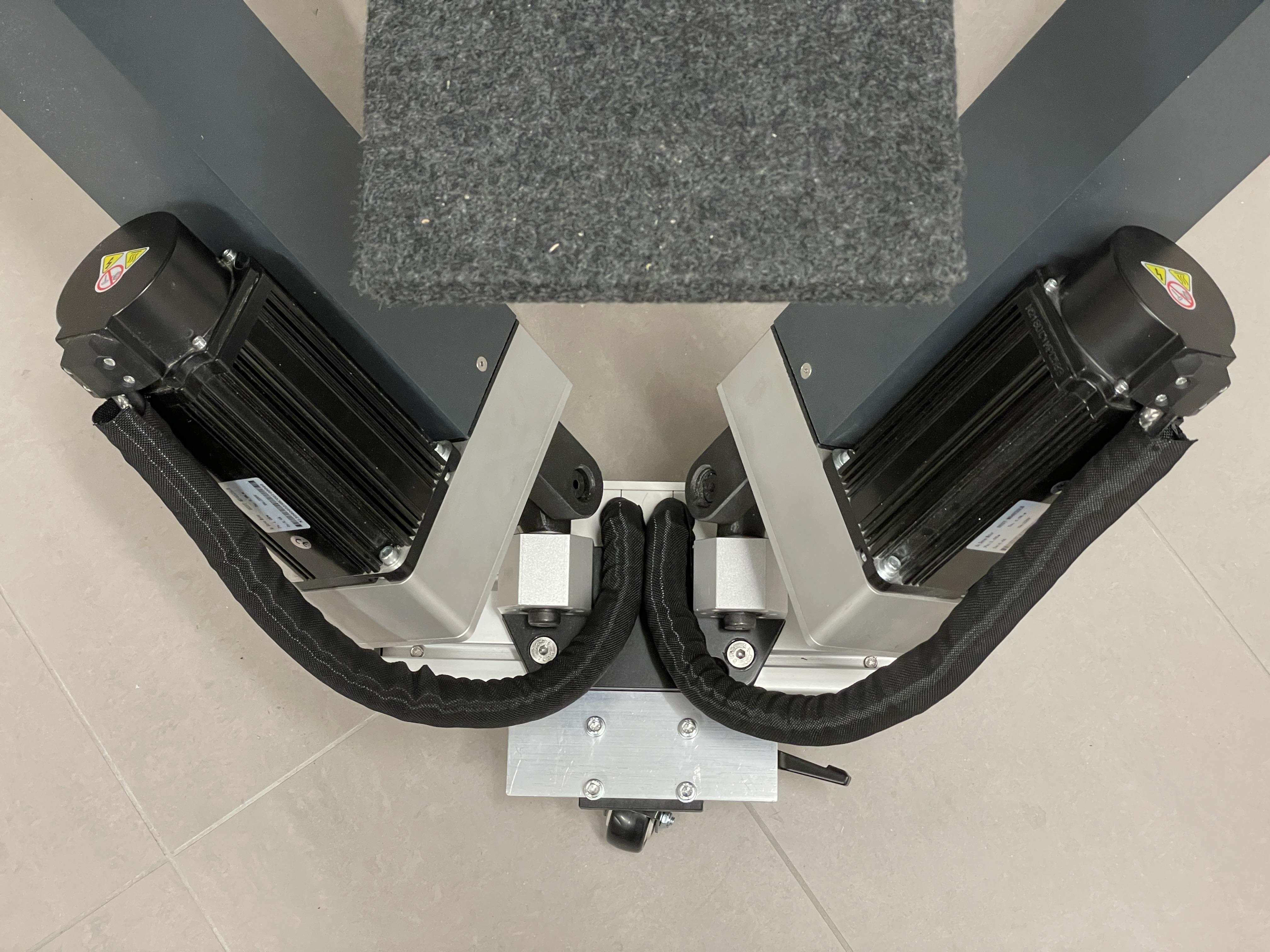

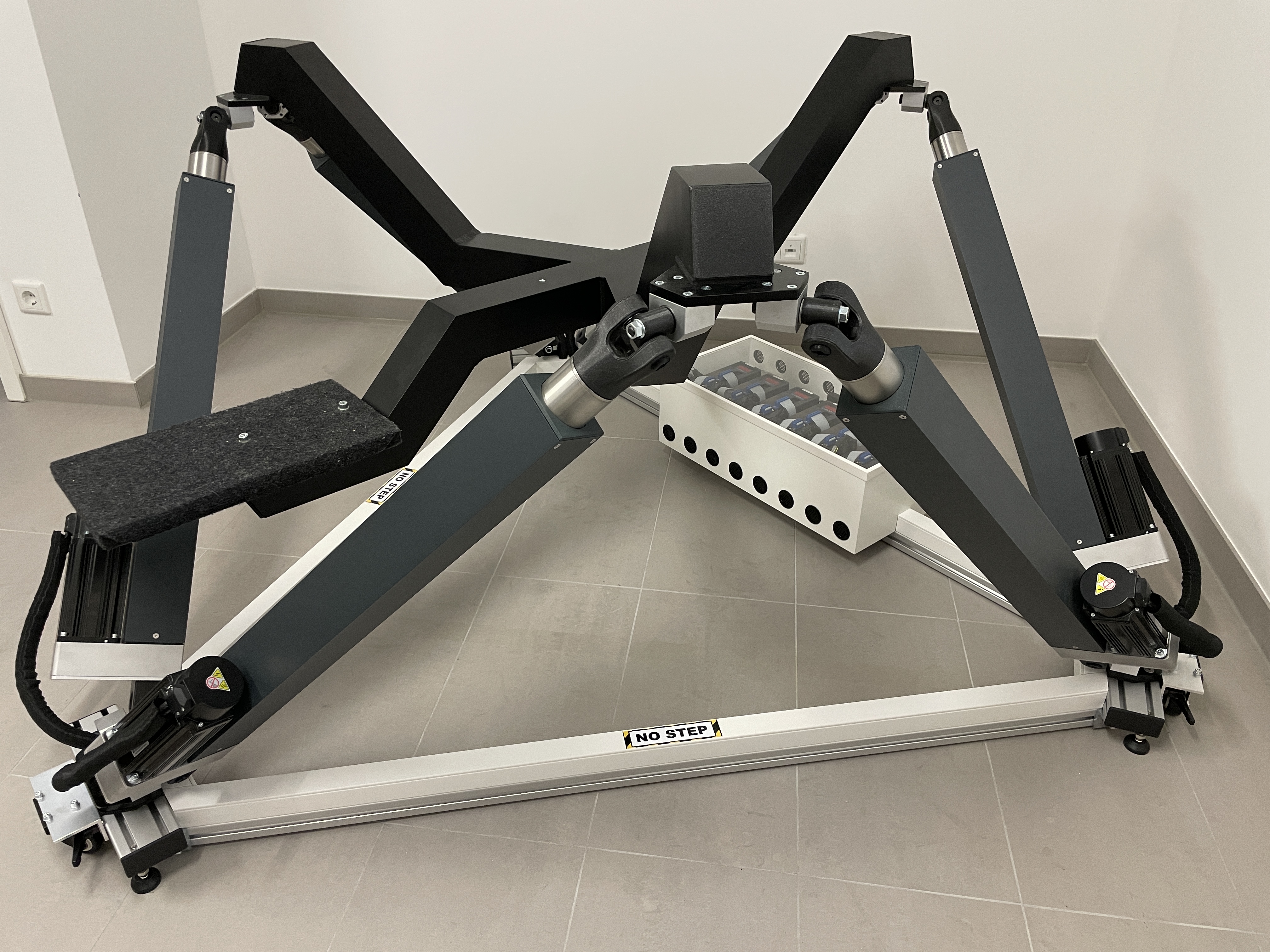

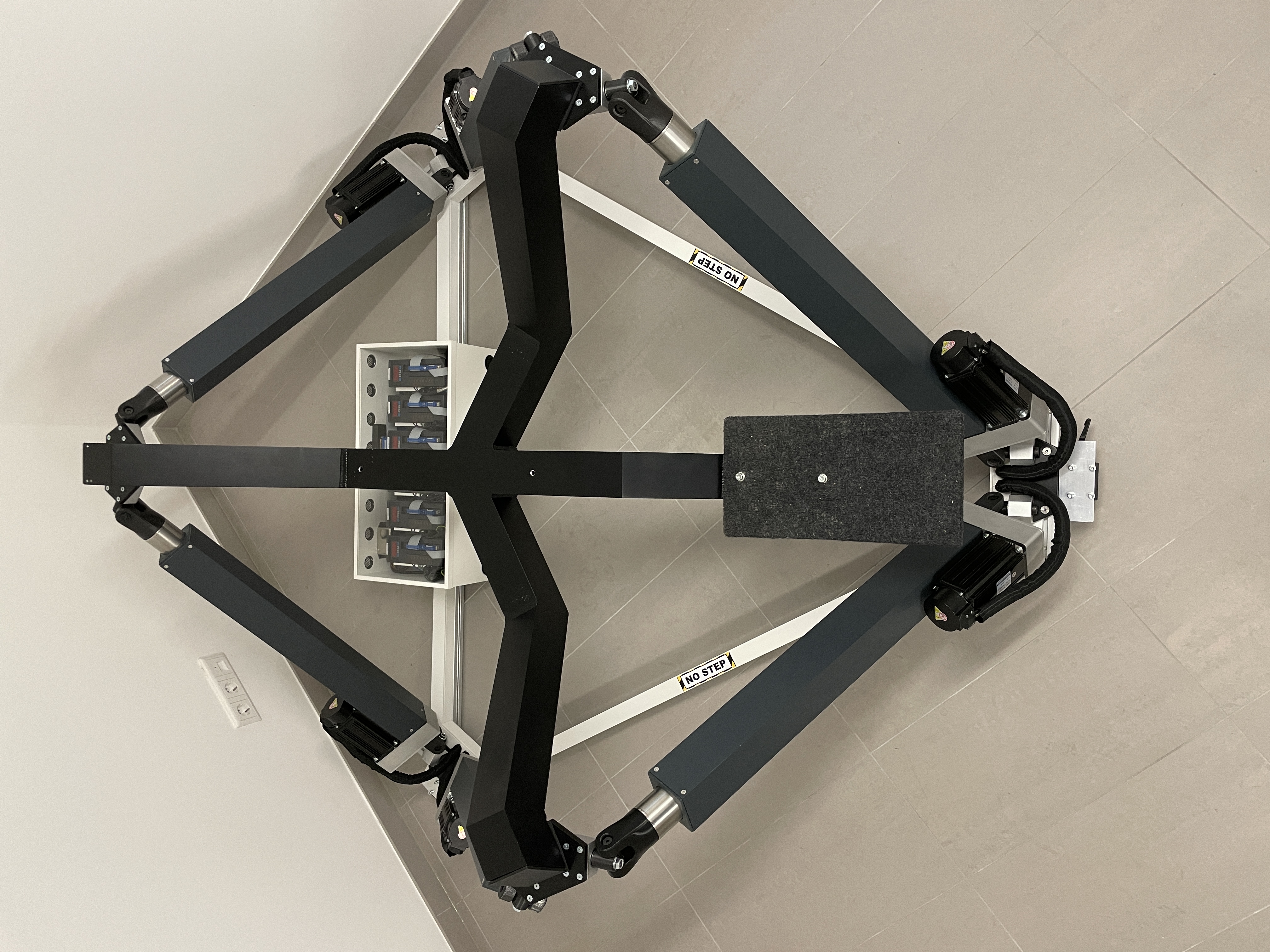

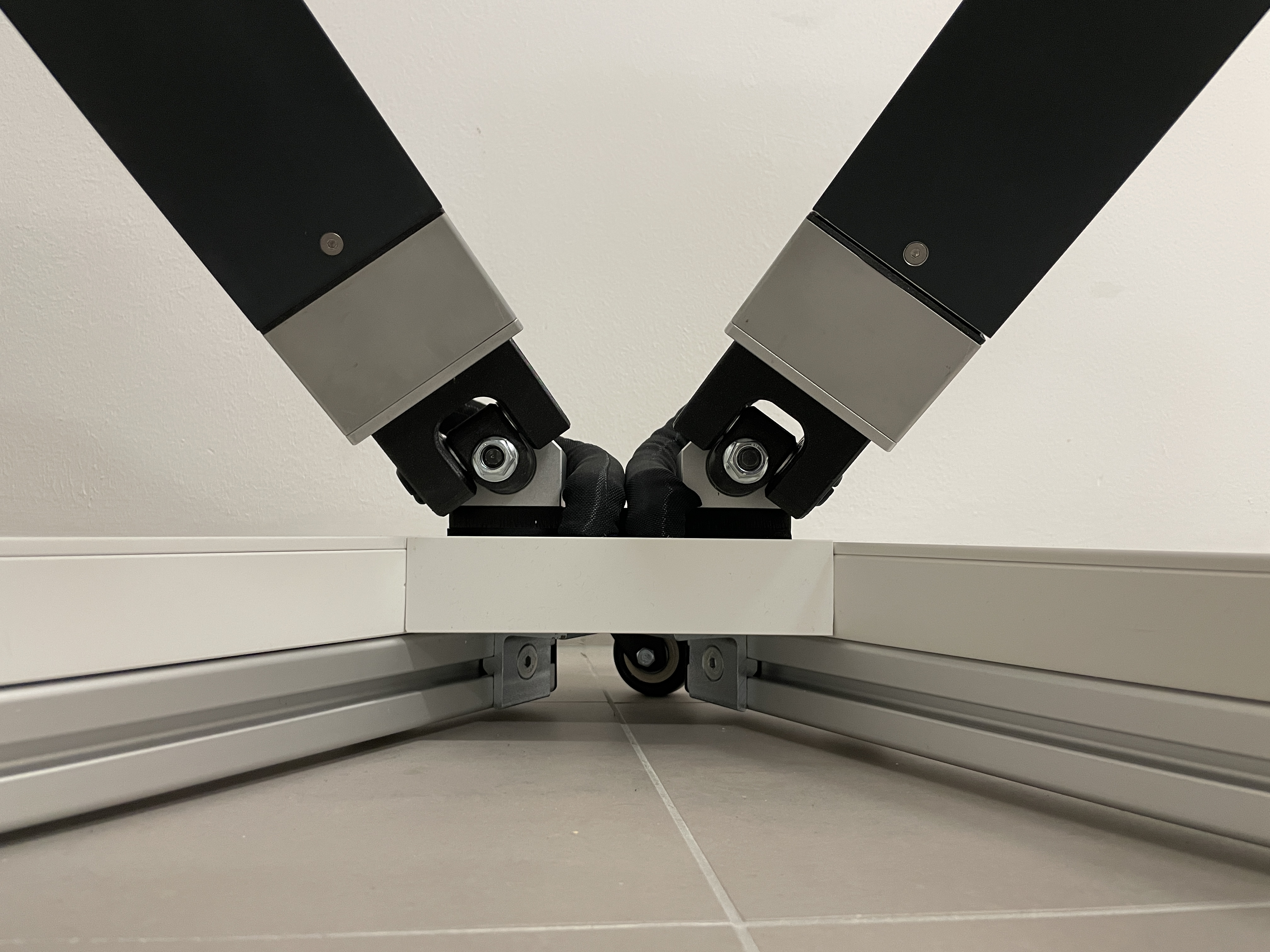

	Some views from various angles.

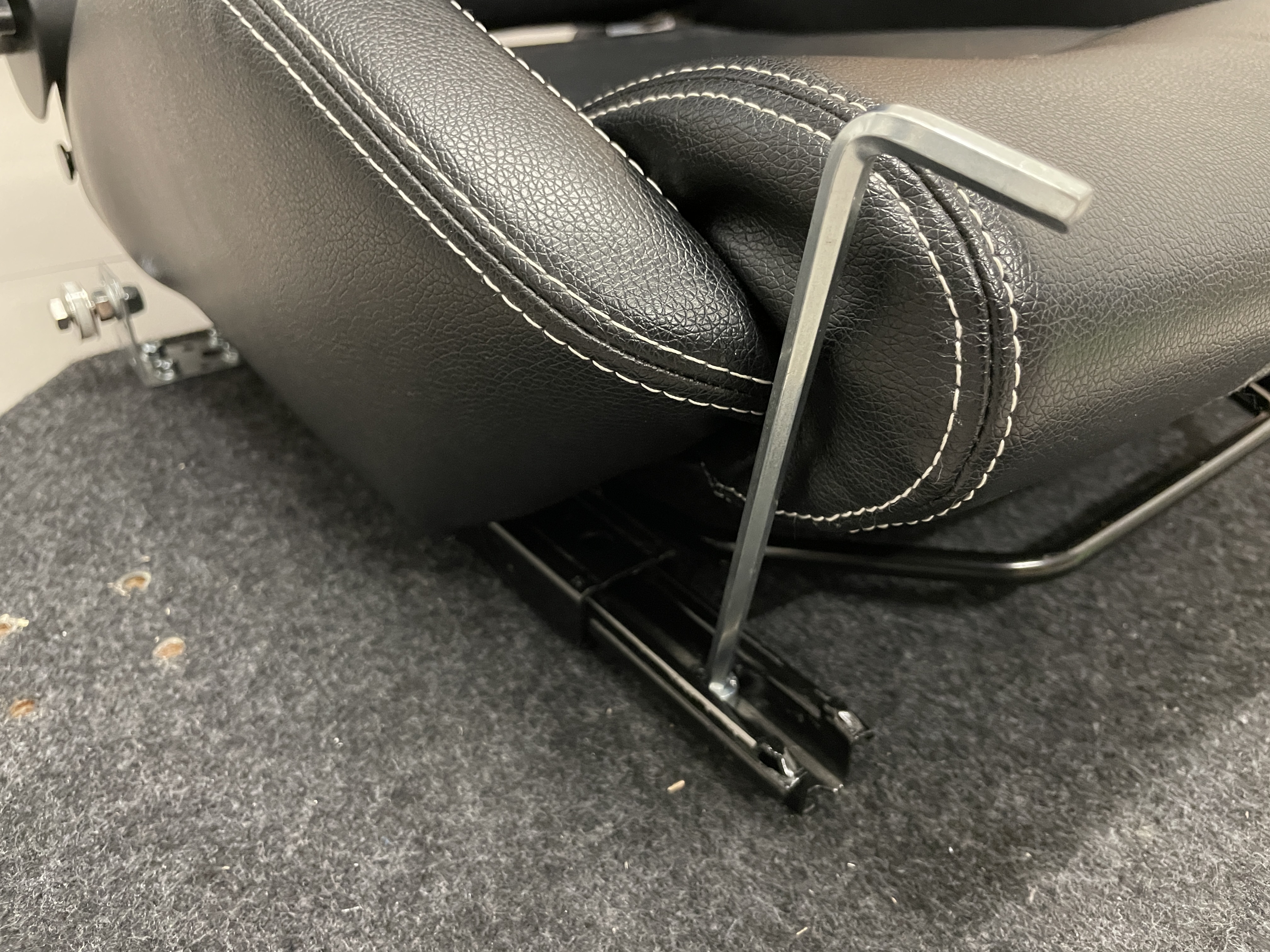

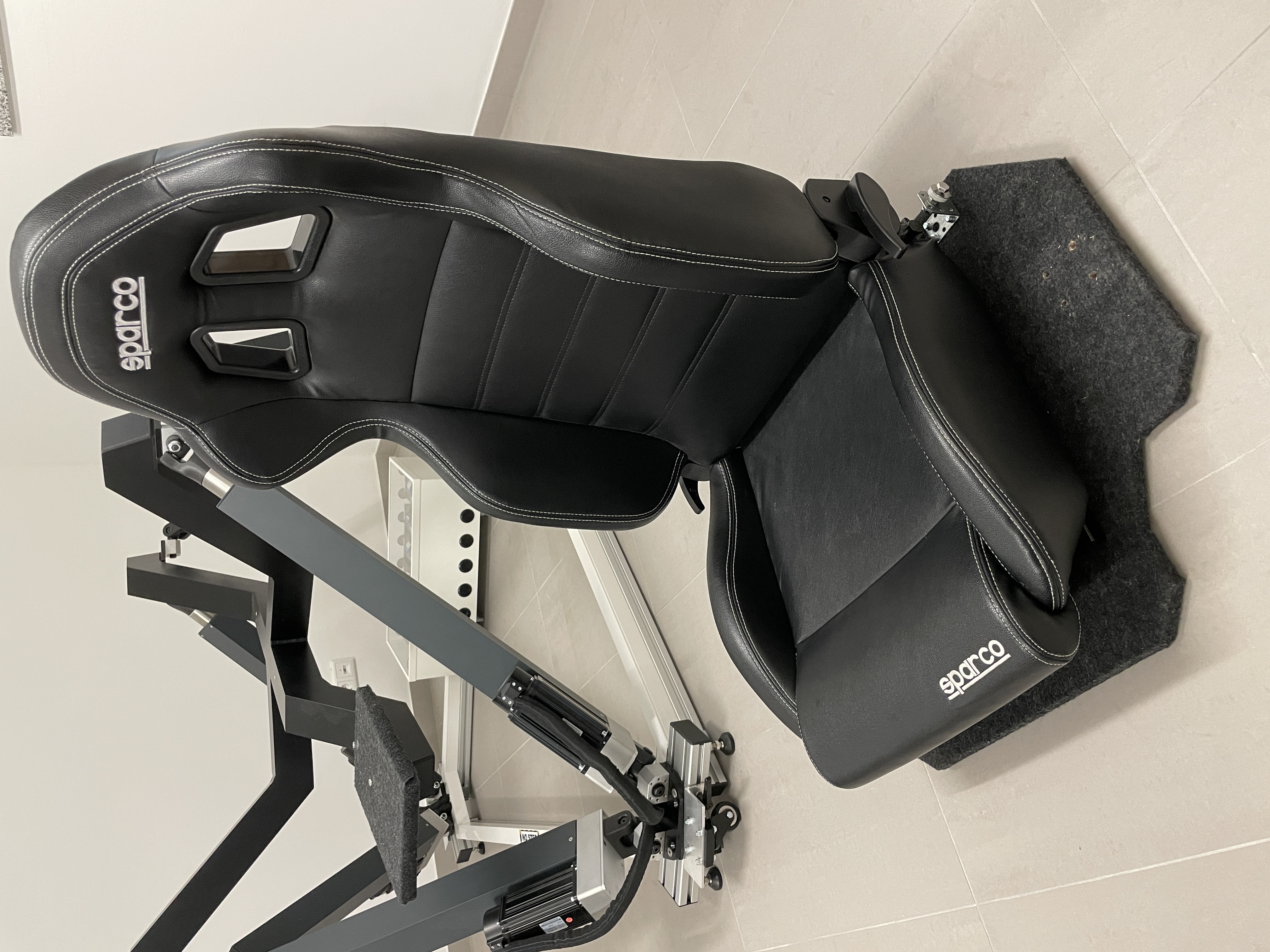

	It turned out that (unlike shown in the above video) it was easier to first mount the seat onto the board and then both seat and board onto the rig,..
	...because to access the front screws of the rails the seat needs to be moved all the way back, which isn't possible on the platform.

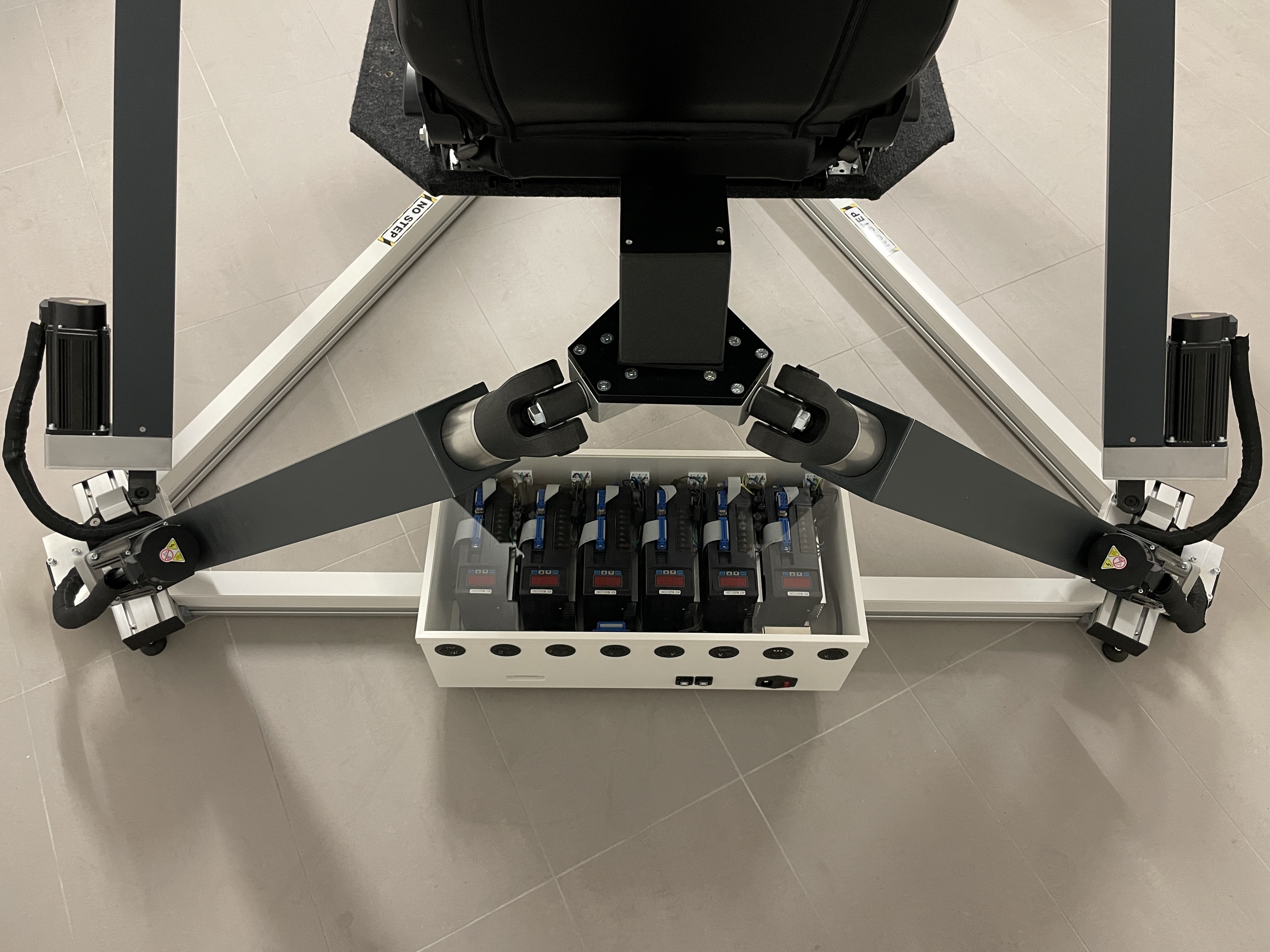

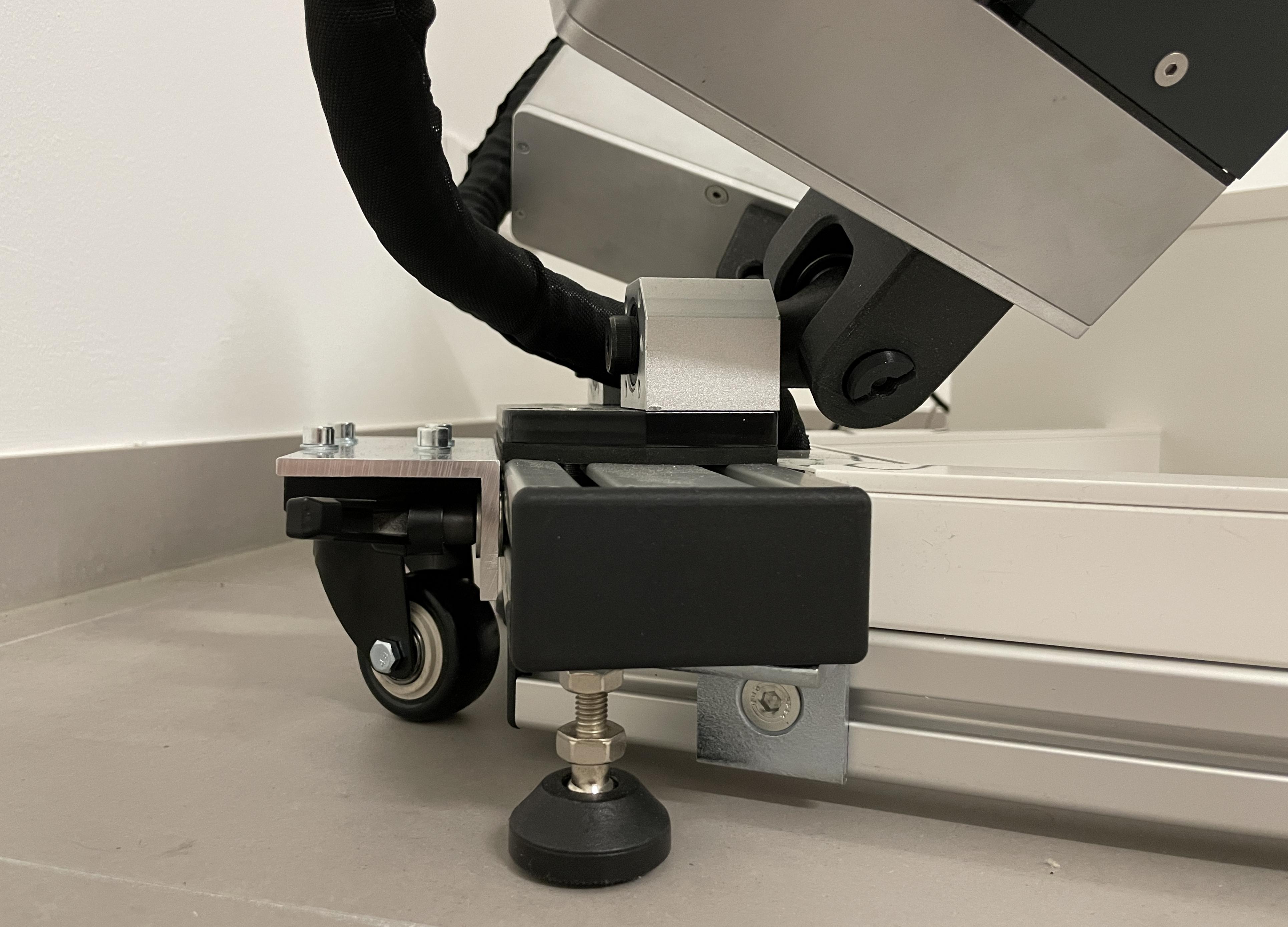

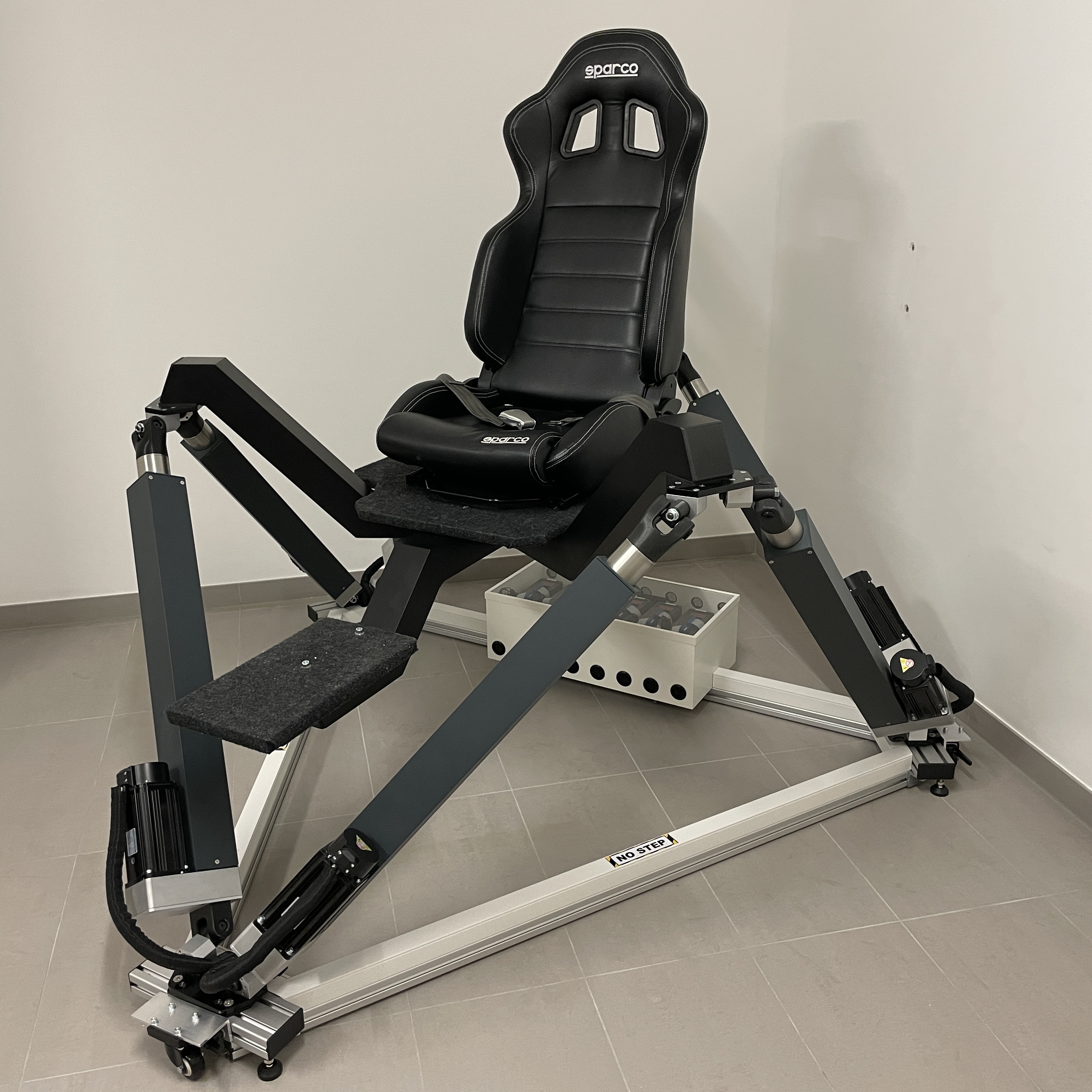

	Here she is, a real beauty! The control box is mounted on the rear traverse, and all the cables are hidden in the white ducts. The wheels can be extended to move the rig around.
