Full Motion Flight Simulator: P6 Mods

Full Motion Flight Simulator
P6 Mods - Spacers

To give the ball joints more space I added spherical washers/spacers, which I obtained here [1] at a reasonable price. You can also get them from amazon [2], but they are much more expensive there. There was also a posting [3] in the DOFRealityBuilders group on facebook, from which I learned that there are special "misalignment spacers" or "rod retaining washers" for this purpose.

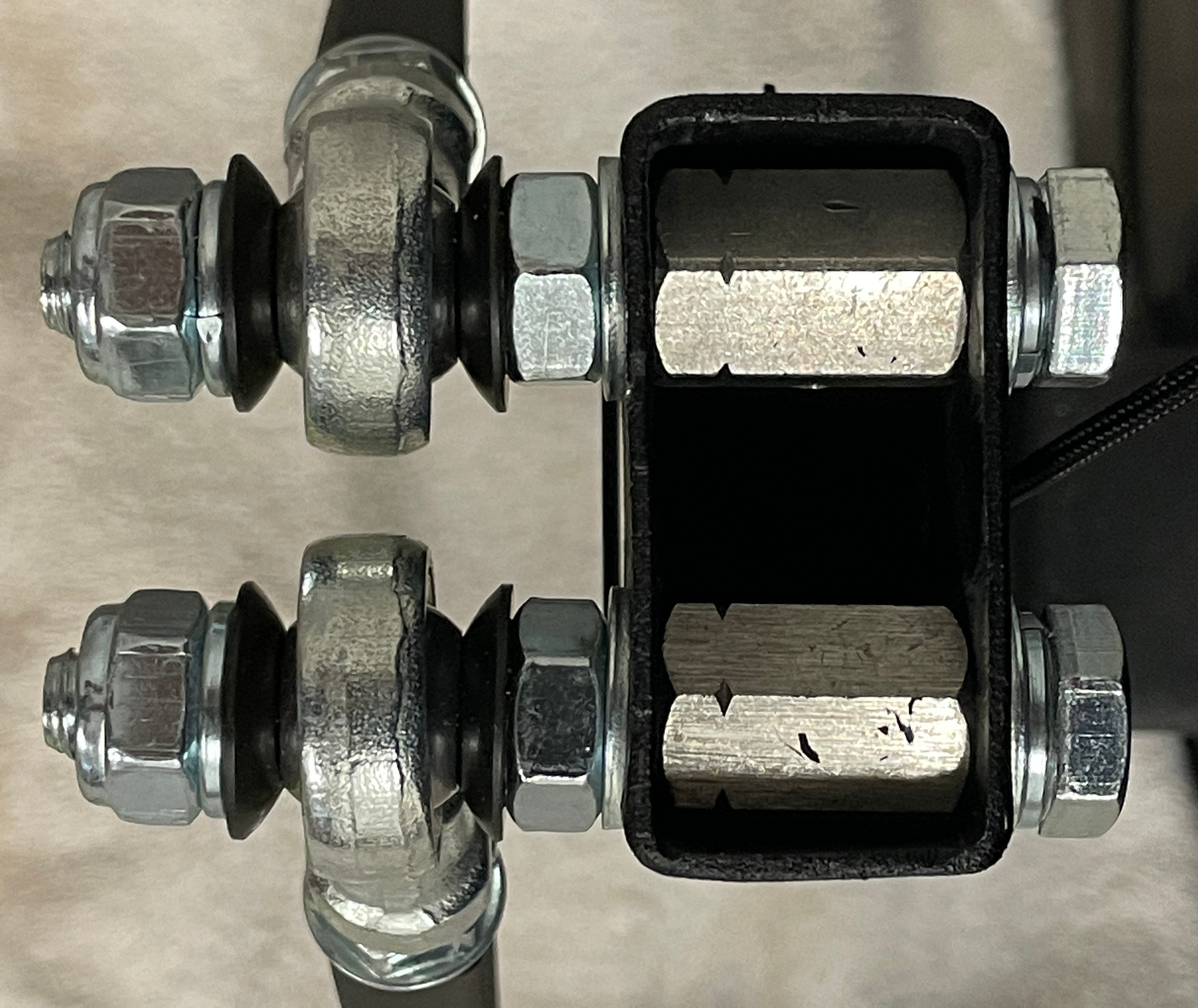

The top ball joints with spacers and long nuts.

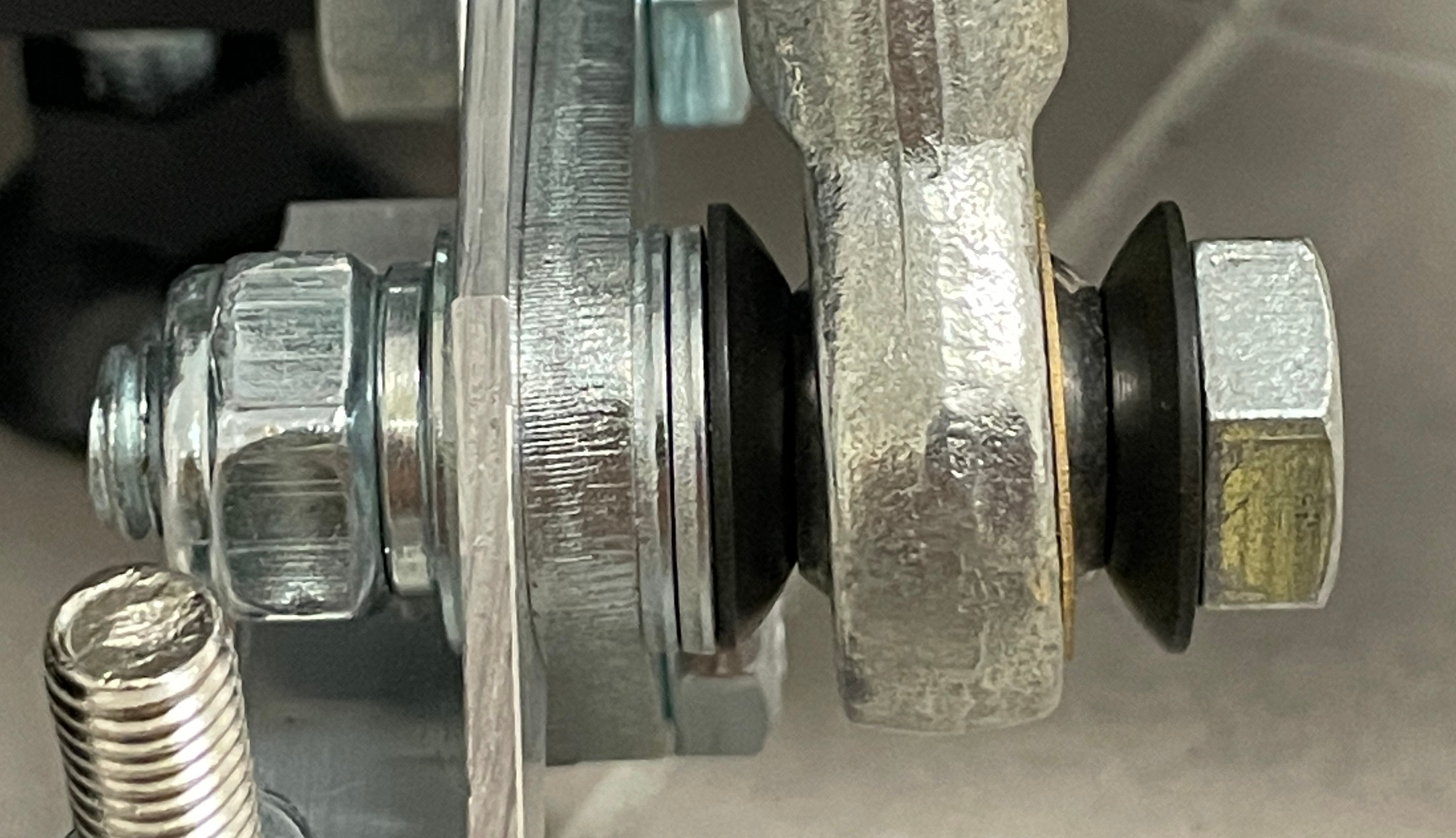

The bottom ball joints with spacers and stud.

[1] https://www.fk-soehnchen.de/werkstatt/normteile/halteseile-kugelscheiben-kugelpfannen/Kugelscheiben-DIN-6319-D1-10-5mm-D3-21mm-Kugelscheiben-DIN-6319-D1-10-5mm-D3-21mm-Kugelscheiben-DIN-6319-D1-10-5mm-D3-21mm.html
[2] https://www.amazon.de/-/en/Spherical-Washing-Machine-Concave-Machines/dp/B0B8859VFL
[3] https://www.facebook.com/groups/1858593921047822/permalink/3230914620482405
